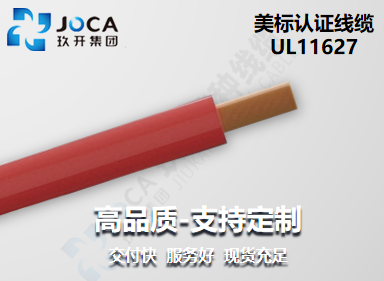

UL11627 电子线是工业级装备内部专用布线线材，，，耐温达 105℃，，，通过 UL VW-1 及CSA FT1笔直燃烧测试，，，用于电脑、电器、电子装备及仪器、仪表等内部配线。。。 。。
应用标准:UL758，，，UL1581
电缆结构
1. 导体:30~2000kcmil
2. 绝缘:聚氯乙烯混淆物
3. 芯线颜色:恣意色
手艺参数：
1. 额定电压:2000 ac or dc
2. 测试电压:10000V
3. 额定温度;105℃
4. 燃烧测试:通过UL VW-1及CSA FT1笔直燃烧测试
| 型号 | 规格 | 近似外径 (mm) | 电缆近似重量 (kg/km) |
| UL11627 | 30AWG | 1.8 | 4.5 |
| UL11627 | 28AWG | 1.9 | 4.9 |
| UL11627 | 26AWG | 2 | 5.9 |
| UL11627 | 25AWG | 2.1 | 6.2 |
| UL11627 | 24AWG | 2.1 | 7.1 |
| UL11627 | 23AWG | 2.2 | 7.6 |
| UL11627 | 22AWG | 2.3 | 8.7 |
| UL11627 | 21AWG | 2.4 | 9.5 |
| UL11627 | 20AWG | 2.5 | 11.1 |
| UL11627 | 19AWG | 2.6 | 12.8 |
| UL11627 | 18AWG | 2.7 | 14.7 |
| UL11627 | 17AWG | 2.9 | 17.1 |
| UL11627 | 16AWG | 3 | 20.4 |
| UL11627 | 15AWG | 3.2 | 24.2 |
| UL11627 | 14AWG | 3.4 | 29 |
| UL11627 | 13AWG | 3.7 | 34.7 |
| UL11627 | 12AWG | 3.9 | 41.4 |
| UL11627 | 11AWG | 4.2 | 50.5 |
| UL11627 | 10AWG | 4.6 | 63.6 |
| UL11627 | 9AWG | 5 | 78.1 |
| UL11627 | 8AWG | 6.3 | 107.2 |
| UL11627 | 7AWG | 6.7 | 128.5 |
| UL11627 | 6AWG | 8.1 | 174.9 |
| UL11627 | 5AWG | 8.8 | 212.7 |
| UL11627 | 4AWG | 9.6 | 256.3 |
| UL11627 | 3AWG | 10.4 | 316.1 |
| UL11627 | 2AWG | 11.4 | 387.1 |
| UL11627 | 1AWG | 13.6 | 511 |
| UL11627 | 1/0AWG | 14.4 | 624.3 |
| UL11627 | 2/0AWG | 15.9 | 769.5 |
| UL11627 | 3/0AWG | 17.3 | 947.3 |
